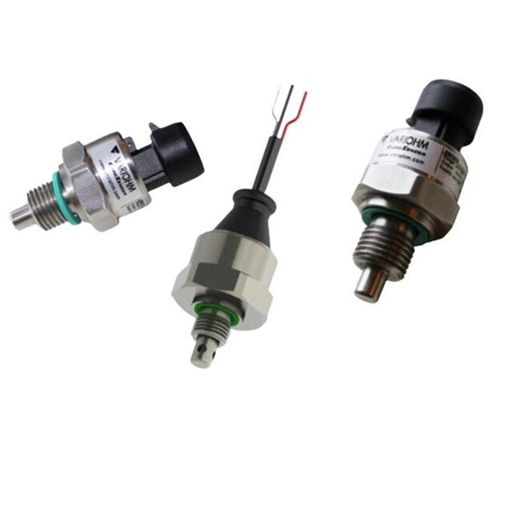

-40°C to 150°C ASL Linear Temperature Sensor

-40°Cto 150°C ASL Temp sensor is a long life and high performance Linear Voltage output ASL temperature sensor, It converts the PT100 RTD temperature sensor into a high performing 0.5 to 4.5vdc output temperature sensor

-40°C to 150°C ASL Linear Temp Sensor Specifications

• Temperature Measurement Range: -40°C ~ 150°C
• Output Type: Analogue Voltage
• Voltage Supply: 5Vdc
• Accuracy: 1%
• Sealing: IP67
• Current Consumption:<7.5mA
• Sensing Technology:PT100 element
• Material: Stainless Steel
• Electrical Connections: 600 mm cable,Miniature connector EN175301-803-C,Packard Metripac,M12x1
• Temperature probe threads: G1/4A-E, M10x1, Male Bird cage with M10x1

Output example table

For model ETP21-M10X1-(-40/150)-5-A the output table will be as follows

Temperature °C	-40°C	55°C	150°C
Output V	0.5V	2.5V	4.5V

Typical -40°C to 150°C ASL Linear Temp Sensor configurations

ETP21-M10-(-40/150)-5-A

• Electrical Output: Ratiometric 0.5V to 4.5V
• Voltage Supply: 5V
• Current consumption: <7.5mA
• Electrical connection: 600mm Cable
• Temperature Connection: M10
• IP Rating: IP67

ETP21-A-(-40/150)-5-A

• Electrical Output: Ratiometric 0.5V to 4.5V
• Voltage Supply: 5V
• Current consumption: <7.5mA
• Electrical connection: 600mm Cable
• Temperature Connection: G1/4A-E
• IP Rating: IP67

-40°C to 150°C ASL Linear Temp Sensor dimensions

ETP21-M10X1-(-40/150)-5-A

Electrical Connections

Datasheets

ASL Linear Temp Sensor Temperature Sensor datasheet
