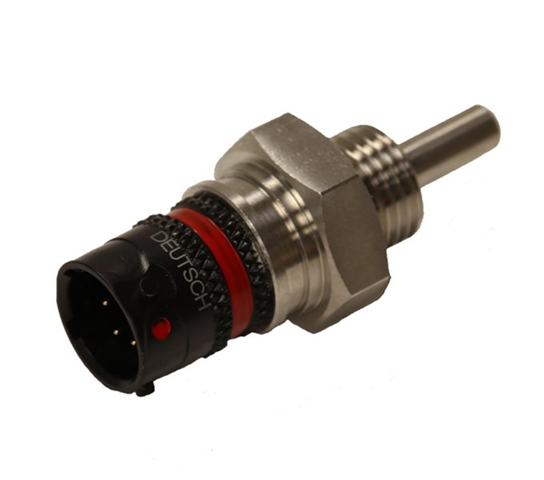

The ETP-AM-SP-ASL Autosport temperature sensor provides a measurement solution where heat, dust and moisture are prevalent and where a compact and robust high-reliability design is required.
ETP-AM-SP-ASL is particularly suitable for demanding Autosport temperature monitoring applications on vehicles, especially in the motorsports industry.
A compact, hardy and reliable Autosport Temperature sensor
- Temperature element: PT100B ,PT1000A and Thermistor 3435K
- PT100B ± 0.3K
- PT1000A ± 0.15K
- Thermistor 10K ± 0.3K @ +25 °C
- Temperature Range: -55°C to 170°C , short term 230°C
- IP Rating: IP67
- Connection: DEUTSCH
- Thread: M10
- Weight 16g
The ETP-AM-SP-ASL is a compact and sleek ASL temperature sensor with a high quality DEUTSCH connector
With its fast response time and wide environmental temperature range, it is equally well-equipped for measurement of liquids and gases used in test machinery and industrial instrumentation.
The ETP-AM-SP-ASL is available with PT100 / PT1000 or NTC elements.
ASL ETP-AM-SP-ASL Temperature sensor specifications
- Temperature element: PT100B ,PT1000A and Thermistor 3435K
- Mating connector ASL-106-05PN-HE
- Accuracy
- PT100B ± 0.3K
- PT1000A ± 0.15K
- Thermistor 10K ± 0.3K @ +25 °C
- Working Temperature Range: -55°C to 170°C , short term 230°C
- IP Rating: IP67
- Response Time in still wate: 7s
- Material: 316 Stainless Steel
- Connection: DEUTSCH
- Thread: M10 ,
- Weight 16g

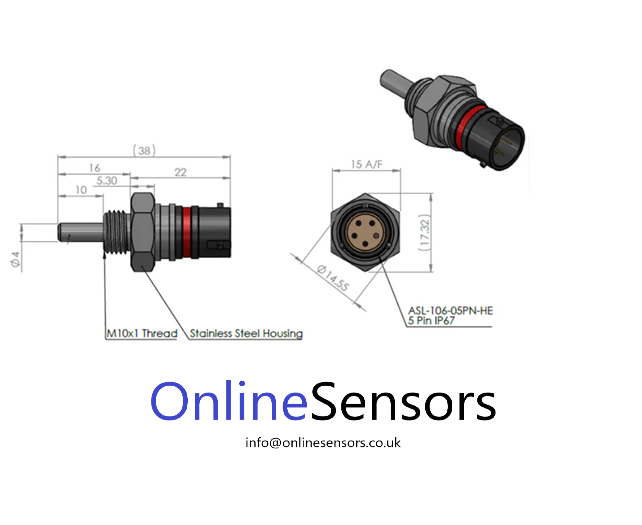

ETP-AM-SP-ASL M10 Dimensions
