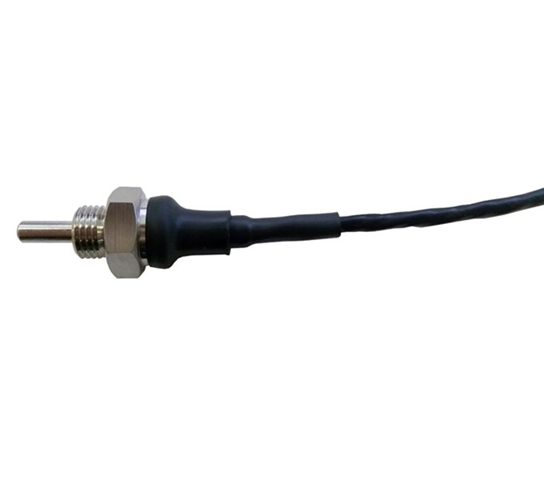

The ETP-AM-SP-100 Autosport temperature probe provides a robust measurement solution where heat, dust and moisture are prevalent such as motorsport and Autosport applications.
This Autosport temperature sensor and Autosport is available with PT100 , PT1000 and Thermistor elements
- Temperature element: Thermistor, PT100B or PT1000A
- PT100B ± 0.3K
- PT1000A ± 0.15K
- Thermistor ± 0.3 K @ +25 °C Beta Value 3435
- Temperature Range: -55°C to 180°C , short term 230°C
- IP Rating: IP67
- Response Time in still wate: 7s
- Material: 316 Stainless Steel
- Connection: FEP 4 core AWG24, tinned copper shield, 3.2 mm OD
- Thread: M10 , contact for the M12 version
This Autosport temperature sensor is particularly suitable for demanding temperature
monitoring applications on vehicles it has a fast response time and wide environmental temperature range
The ETP-AM-SP-100 Autosport temperature sensor is designed for measurement of liquids and gases used in medical equipment, test machinery, industrial instrumentation and process control systems.
ETP-AM-SP-100 ASL Temperature Sensor Specifications
- Temperature element: Thermistor, PT100B or PT1000A
- Accuracy
- PT100B ± 0.3K
- PT1000A ± 0.15K
- Thermistor ± 0.3 K @ +25 °C Beta Value 3435
- Working Temperature Range: -55°C to 180°C , short term 230°C
- IP Rating: IP67
- Response Time in still wate: 7s
- Material: 316 Stainless Steel
- Connection: FEP 4 core AWG24, tinned copper shield, 3.2 mm OD
- Heatshrink: Elastomer
- Thread: M10 , contact for the M12 version

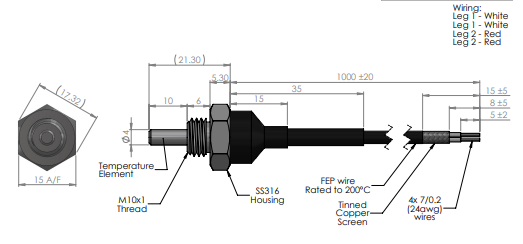

ETP-AM-SP-100- M10 Dimensions
