ETP21 Ratiometric Temperature sensor is a long life and high performance Ratiometirc temperature sensor, It converts the PT100 RTD temperature sensor into a high performing Ratiometric 0.5 to 4.5vdc output temperature sensor
ETP21 Ratiometric Temperature Sensor Specifications
- Temperature Measurement Range: -40°C ~ 150°C
- Output Type: Analogue Voltage
- Voltage Supply: 5Vdc
- Accuracy: 1%
- Sealing: IP67
- Current Consumption:<7.5mA
- Sensing Technology:PT100 element
- Material: Stainless Steel
- Electrical Connections: 600 mm cable,Miniature connector EN175301-803-C,Packard Metripac,M12x1
- Temperature probe threads: G1/4A-E, M10x1, Male Bird cage with M10x1
Output example table
For model ETP21-M10X1-(-40/150)-5-A the output table will be as follows
| Temperature °C | -40°C | 55°C | 150°C |
| Output V | 0.5V | 2.5V | 4.5V |
Most common ETP21 configurations
ETP21-M10-(-40/150)-5-A
- Electrical Output: Ratiometric 0.5V to 4.5V
- Voltage Supply: 5V
- Current consumption: <7.5mA
- Electrical connection: 600mm Cable
- Temperature Connection: M10
- IP Rating: IP67
ETP21-A-(-40/150)-5-A
- Electrical Output: Ratiometric 0.5V to 4.5V
- Voltage Supply: 5V
- Current consumption: <7.5mA
- Electrical connection: 600mm Cable
- Temperature Connection: G1/4A-E
- IP Rating: IP67

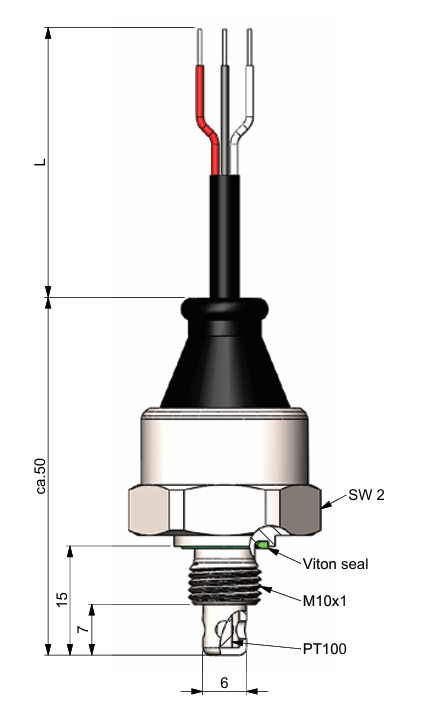

Ratiometric Temperature sensor dimensions
ETP21-M10X1-(-40/150)-5-A

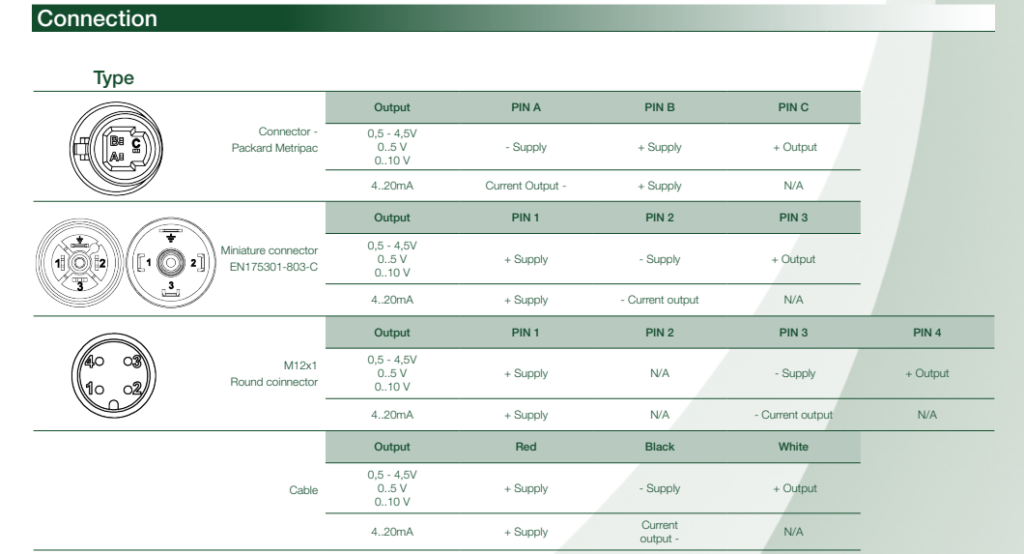

Electrical Connections
