We supply UK made high quality Oil Pressure sensors for the Automotive sector . They are designed manufactured and shipped from the UK. The ASL OSL Series are ideal for Autosport and Motorsport applications.
- Ratiometric supply 3V to 5V
- Fixed Voltage supply 8V-16V
- Accuracy ±0.5%
- Customisable – Output – Pressure – Port
- Low power consumption.
- 3 wires VDD +, VSS – ,Signal
- OEM Bulk order discounts
- Instrumentation support
- 350mm Cable standard plug assemblies available
Oil Pressure Sensor Specifications
- 5V ratiometric or 8-16V regulated supply
- Output 0.5V to 4.5V
- Cusomisation
- M10 UNF or custom pressure port
- Accuracy ±0.5%
- 350mm Cable standard plug assemblies available

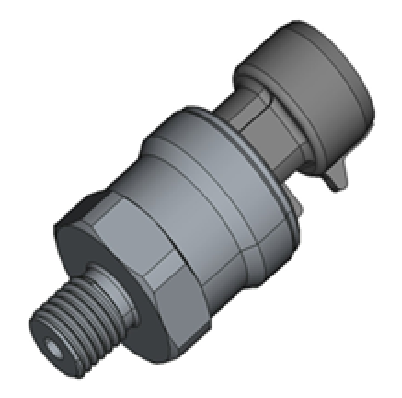

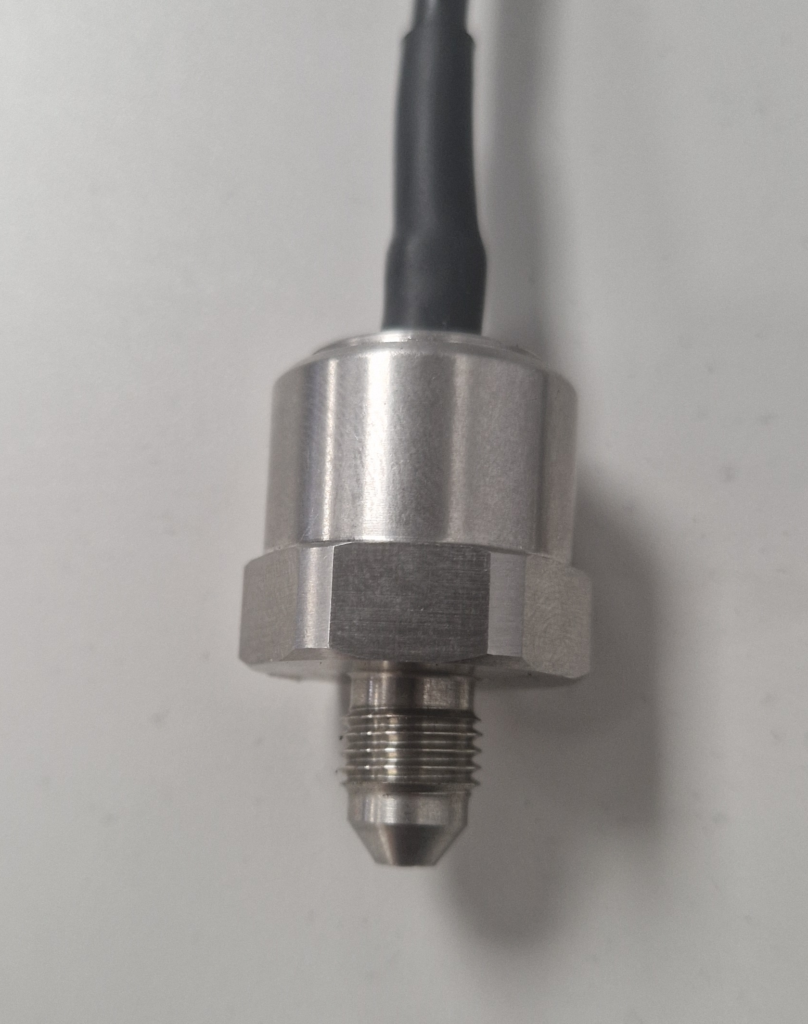

Oil Pressure sensor Images
Description
This Automotive oil pressure sensor for Autosport and Motorsport is built and designed for the rugid Automotive environment. They are made in the UK with short lead times.
The OSL moto ASL Oil Pressure Sensor offers wide options of pressure range from 2 to 400 bar
and accurate voltage output, either from a ratiometric 5V supply or 8-16V DC, ensuring compatibility with
varied vehicle, test stand and dyno systems.
Electrical connection
It is supplied as standard with 350mm cable with 3 cores for Positive Negative and Signal. Plugs and connectors can also be added.
Pressure port
Currently standard is M10 and UNF pressure ports and we have the ability to modify the housings as per request.

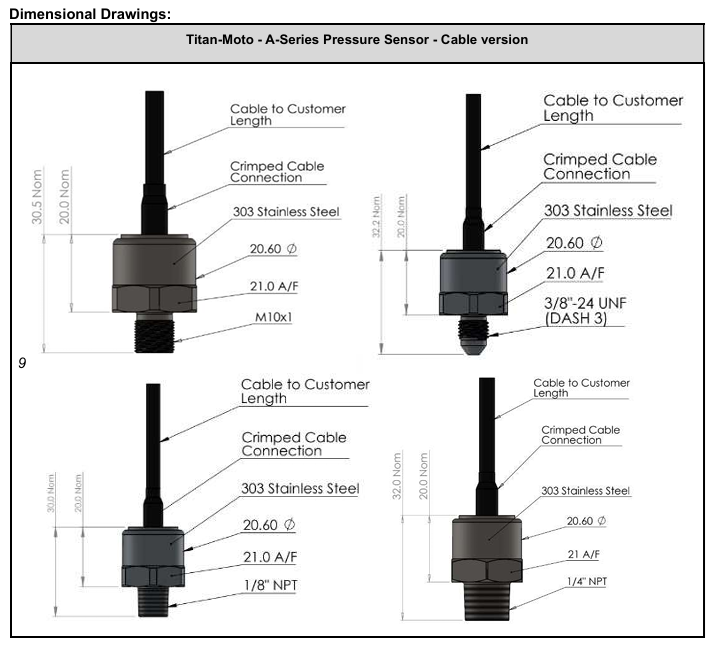

Oil Pressure sensor Dimensional Drawings
