RAK3172 Module UK LoRaWAN experts

RAK3172 is a small form factor LoRaWAN and LoRa IoT device. I t has low power capability , AT command set and a supply Voltage range of 2V to 3.6V

Ultra-Low Power Consumption 1.69 μA in sleep mode
Core: ARM 32-bit Cortex – M4 with MPU Up to 256 KB flash memory with ECC
64 KB RAM
RUI3 API Compatible
AT and Binary Commands Support
OnlineSensors Ltd Support C Code and schematics
AT and Binary Commands Support
Temperature range: -40 °C to +85 °C
Supply voltage: 2.0 ~ 3.6 V

Send Enquiry

RAK3172 Dev Kit

Check Stock

RAK3172 Module Details

The RAK3172 is a low-power, long-range transceiver module designed for LoRa and LoRaWAN applications, based on the STM32WLE5CC chip. Its firmware utilizes RAKwireless Unified Interface V3 (RUI3), enabling the creation of various functionalities through RUI APIs. This module offers an easy-to-use, compact, and low-power solution for long-range wireless data applications. It adheres to Class A, B, and C of the LoRaWAN 1.0.3 specifications and seamlessly connects to LoRaWAN server platforms such as The Things Network (TTN), Chirpstack, and Helium. Additionally, it supports LoRa Point-to-Point (P2P) communication, allowing for quick implementation of customized long-range LoRa networks.

LoRa module for Smart City, Smart Agriculture, Smart Industry
Frequency range: 150 MHz to 960 MHz
RUI3 API Compatible
AT and Binary Commands Support
Supported bands: (EU433, CN470, RU864, IN865, EU868, AU915, US915, KR920, and AS923)
Alpha Micro technical support available for maximum benefit for your application

Send Enquiry

RAK3172 Dev Kit

Check Stock

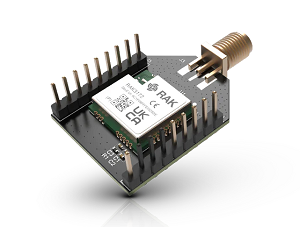

RAK3172 Development PCB

The RAK3172 is available in a XBee format for easy access to the pins and peripherals. The RAK3272S Breakout PCB for the RAK3172 is ideal for the initial project development

RAK3272S Breakout PCB for RAK3172

RAK3172 Ordering Information

Quick despatch from our UK warehouse
Bulk order discounts

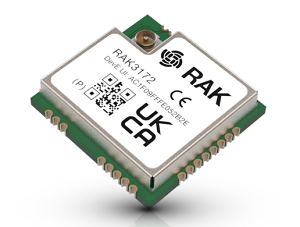

RAK3172-8-SM-I IPEX Connector RAK SKU 305045

IPEX connector

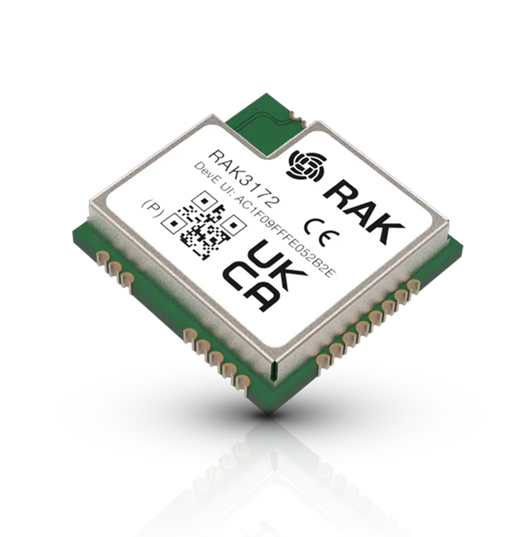

RAK3172-8-SM-NI No IPEX Connector RAK SKU 305044

No IPEX connector

RAK3172 Specification

LoRa module for Smart City, Smart Agriculture, Smart Industry

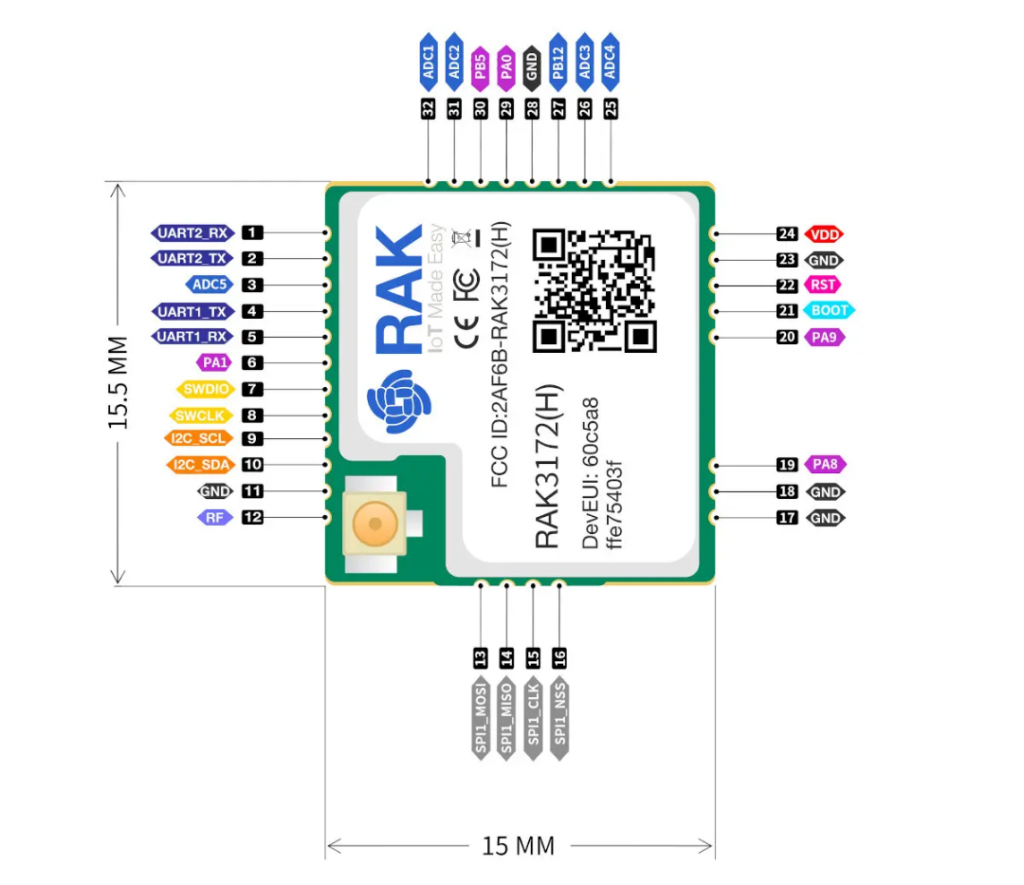

Compact Form Factor: 15 x 15.5 x 3.5 mm 32 Pin Stamp Pad for PCB SMT mounting I/O ports: UART/I2C/SPI/ADC/GPIO
Temperature range: -40 °C to +85 °C
Supply voltage: 2.0 ~ 3.6 V
Frequency range: 150 MHz to 960 MHz
Low-Power Wireless Systems with 7.8 kHz to 500 kHz Bandwidth
Ultra-Low Power Consumption 1.69 μA in sleep mode
Core: ARM 32-bit Cortex – M4 with MPU Up to 256 KB flash memory with ECC
64 KB RAM
RUI3 API Compatible
AT and Binary Commands Support
