-10 to 60°C Temperature Transmitter IP68 with 4-20mA Output 2 wire loop.
STT-26 -10 to 60°C Temperature Transmitter Details
- Output Signal: 4-20mA, 2 wire current loop
- Supply Voltage: 10-32Vdc
- Diameter: 25 mm
- Media Compatibility: 316 stainless steel or CA104 marine bronze housing with PUR, TPE-U or FEP cable
- Special Options: Seawater compatibility, custom temperature range
- Temperature Measurement Ranges:-10-60°C
Lead times on this product is 1-2 weeks Get in touch for any questions or customisations
-10 to 60°C 4-20mA Calculator
| Input Temperature °C | Output Current mA |
| -10°C | 4 mA |
| 7.5°C | 8 mA |
| 25°C | 12 mA |
| 42.5°C | 16 mA |
| 60°C | 20 mA |
Description

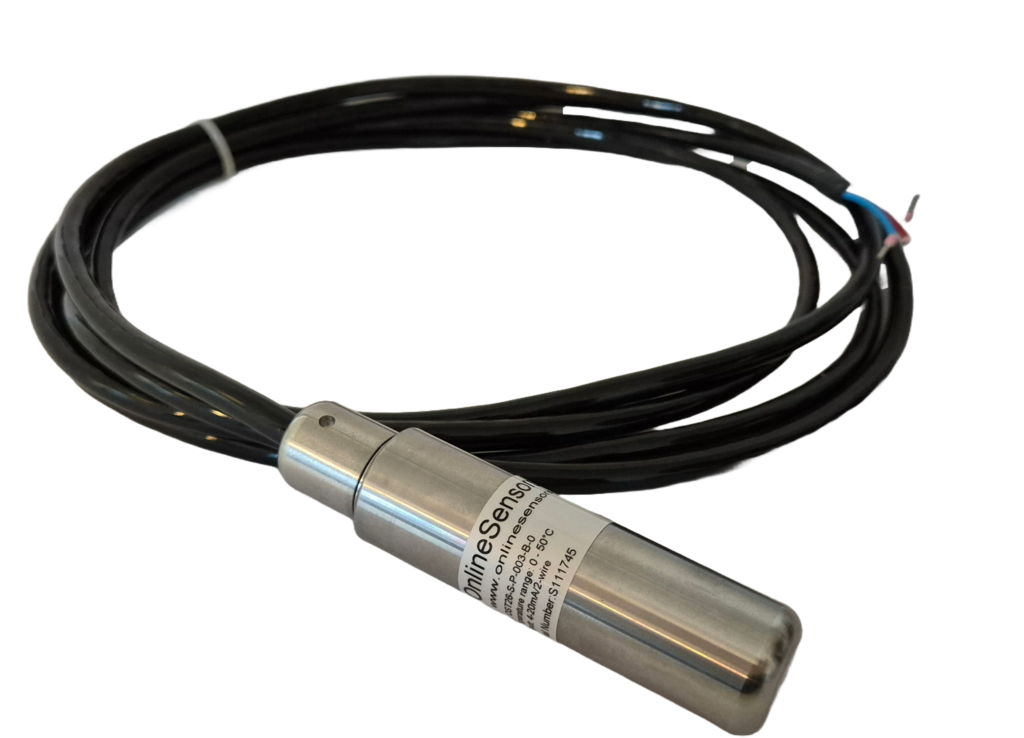

The STT-26 Submersible temperature transmitter has been designed to be permanently submersed in liquids and suspended by its cable making installation very simple. The housing is available in either stainless steel or marine bronze to ensure complete compatibility with the media.
The temperature measuring element is a resistance thermometer and is secured in place with solid epoxy potting in the body of the sensor, to ensure the quickest response time to temperature changes. The sensing element is paired with accurate amplifier electronics to produce a 4-20mA output scale over your desired temperature range.
The device can also be rescaled to measure over a different temperature range using the ‘User Configuration Interface’ and simply connect the output wires to the device, interface to the PC/Laptop USB port and use the free software supplied.
Application Tips
When Enquiring for the STT-26 different materials are available to suit the media the STT-26 will be exposed to
For Sea water
- Marine Bronze Case
- TPE-U Cable
For Fresh water
- Stainless Steel 316 Case
- PUR Cable
Customisation and Design
What sets OnlineSensors Ltd apart from other instrumentation companies is that we are open to work with our customers to customise to their requirements , an example of what we can modify is below.
- Pressure ports
- Housing and enclosures
- Pressure Range
- Electronics
- Output connections
The above are just some examples , the best advice is to get in touch with us
