- Pressure ranges from 0.5 up to 600 bar
- Compatible with Linux and Raspberry Pi
- Accuracy <±0.25% / <±0.10%
- Digital USB interface
- Choice of mechanical connections
- Cost effective for Industrial and OEM Solutions
- Graphical User interface
- API for system integration
UPS-GP Description
The UPS-GP provides a direct and simple interconnection to the USB port of your PC, Raspberry Pi, Arduino or any device with a USB input. The supplied PC Graphical User Interface allows a clear display of pressure with a real time graph, logging capability and a simple to use command set to communicate to the UPS-GP for bespoke applications.

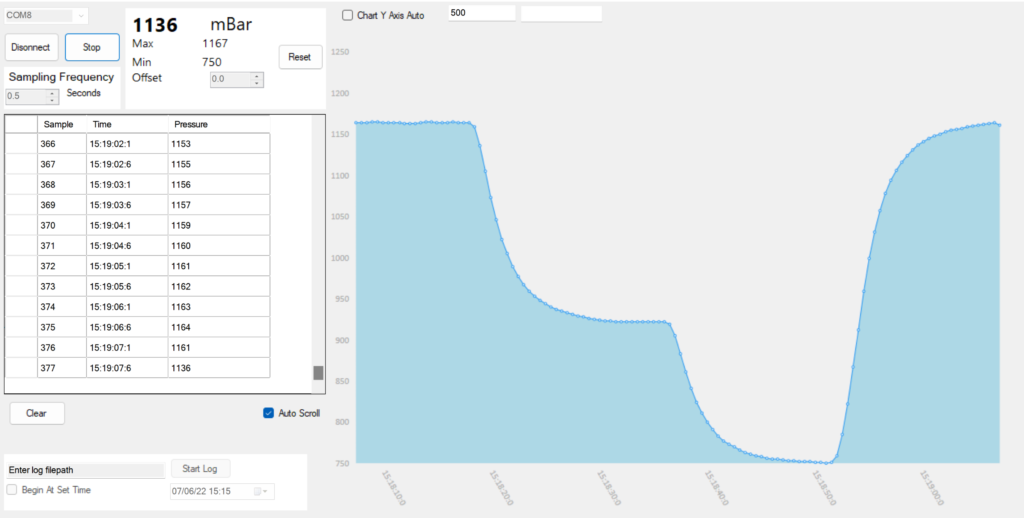

Graphical User interface
The UPS-GP has a light weight graphical user interface to display pressure it has the following features:
- Graph
- Minimum and maximum
- Tabulated data
- Ability to log to a .csv file
Windows PC and Raspberry pi Linux USB Serial output
The UPS-GP is ideal for OEM application and to integrate into an existing or new project and system. API commands sent via serial port allow the user to request the pressure values and other parameters easily with ASCII commands.
The UPS-GP is one of the only industrial Raspberry Pi Pressure sensors because of its USB serial interface.
Pressure can be read quickly onto any USB serial terminal with
