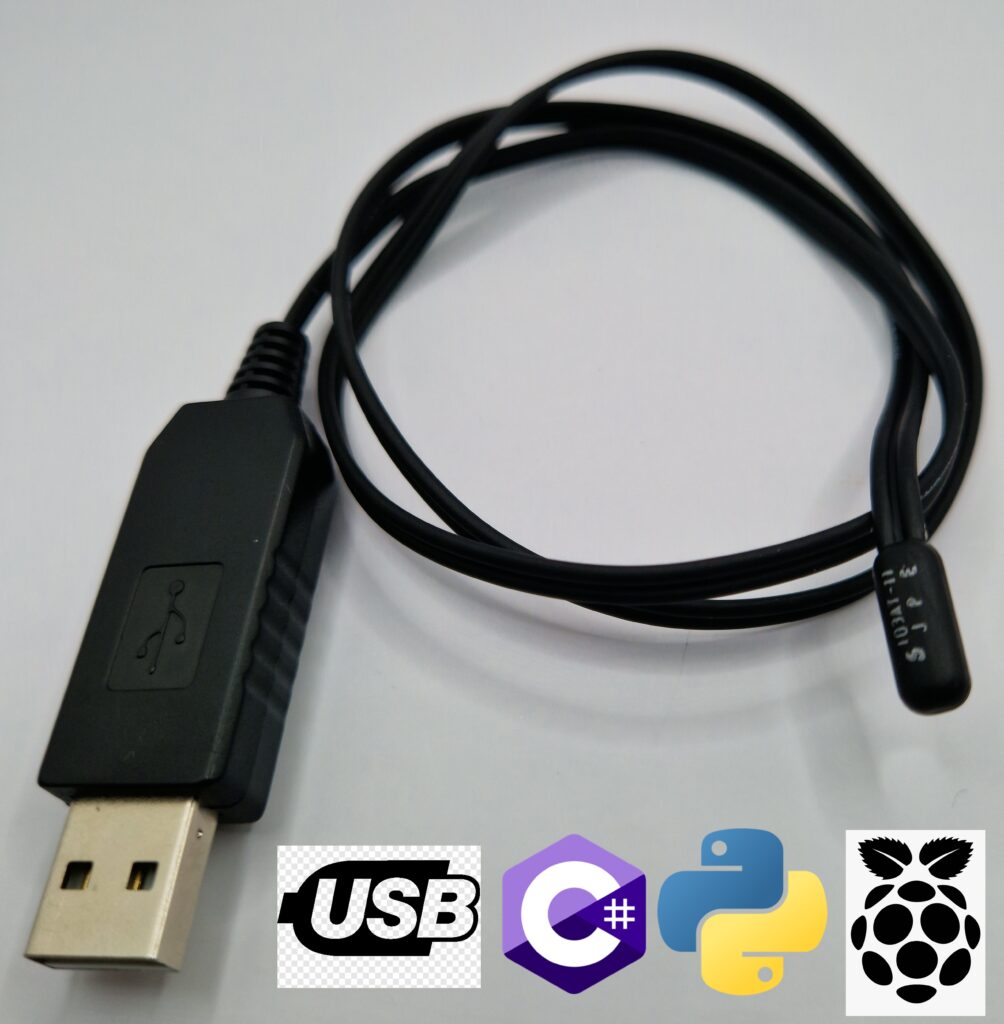

UTS-T11 USB Temperature sensor ideal for PC Linux and raspberry Pi projects.
- Temperature range -24°C to 103°C
- Ideal for Server rooms and smart freezers
- Ask about bulk pricing
- Hobbyist and industrial
- Raspberry Pi compatible + code examples
- USB Serial ASCII output Python C++ and C# examples
- ASCII serial output for easy USB Sensor integration
- IP67
- 1.5m sensor cable length
- Easy USB Integration with engineering support
- Free USB sensor GUI with graph , logging and visual
Plug and play PC, Pi and Linux Thermometer with serial USB temperature output in degrees Celsius example code ready for free download.
Description
USB Temperature Sensor is a USB Thermometer.
The UTS-T11USB Temperature Sensor is an easy way for engineering projects , OEMs and the end user to visualise, log and monitor the temperature, with a fast ASCII serial output rate of 7ms the USB Temperature Sensor is a simple accurate and cost effective USB Sensor.
Implementation support , customizations and command sets is provided for those who want to integrate the USB temperature sensor into their own systems.
USB Temp Application Examples
Ways to interface with the UTS USB Temperature Sensor Range
Raspberry Pi Temp Sensor Example and NO SOLDERING
Log the temperature without soldering with a plug and play connection by viewing the Raspberry pi Temperature sensor guide
Linux Temperature Sensor Example
Log the temperature with a Linux system by following the How to Log the Temperature with Linux guide

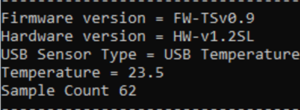

C# Temp Sensor Example
View the temperature on a PC with the USB C# Temperature sensor example
USB Temp comparison Why the UTS-T11 is the best!
View the comparison graphs in our USB thermometer comparison article that demonstrates the UTS T11 is the ideal USB temp sensor for domestics and industrial applications
Output
USB Temperature Sensor has USB serial ASCII format so any system with a USB serial port can interface with the USB temp Sensor. The temperature can be logged with the free USB Temperature Sensor GUI or by a custom system easily with the UTS-T11 embedded ASCII command set.
Connection details
UTS-T11 USB Temp Sensor uses the USB Serial port interface.
Baudrate 9600 ( changeable upon request)
8 Data bits
1 Stop Bytes
Parity None
Sensor Information
USB Temperature Sensor has the following specifications
- -24°C to 103°C
- Degrees Celsius
- Accuracy 0.5°C
- Resolution 0.5°C .
- Fast sample rate
- waterproof probes available
- fast response times
- USB Temperature sensor software
Use Cases
- PC Temperature
- Weather station
- Raspberry Pi
- Environmental chamber monitoring
- Temperature control
- Server room
- 3d printers
- commercial fridges and cold rooms
Integrations
- ASCII Command set
- Raspberry Pi
- Linux
- Windows
- Free User GUI.
- Customisable user interface on request
Versatile ,high quality and robust USB Temperature sensor
UTS-T11-1500
- Versatile
- TPE IP67 probe
- Good response time
- Output rate of 7ms
- 0.6m or 1.5m cable length
- High quality build with flexible cable
- 0.5°C resolution and accuracy
- Ideal for Raspberry Pi and PC
- Graphical User Interface free download UTS GUI +
