Yocto-MaxiThermistor USB 6 Thermistor Channel

The Yocto-MaxiThermistor is a USB interface for NTC and PTC thermistors, it converts 6 thermistors into a USB interface.

It can measure up to six temperature sensors. Each of the six channels can be configured independently thanks to tables or reference temperatures and β coefficients.

The Yocto-MaxiThermistor is an isolated device: there is an electric isolation between the sensor part and the USB part.

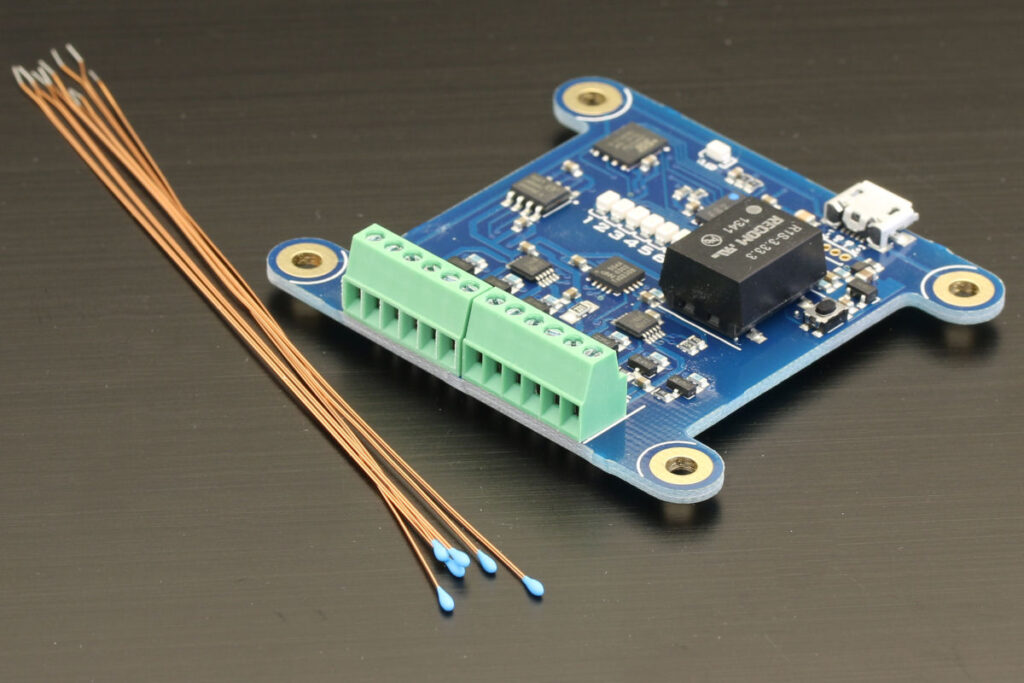

Yocto-MaxiThermistor is shipped with six tiny NTC thermistors connected to a 10 cm wire. You can extend them with any regular electric wire.

The six channel terminal block allows the use of 30-18 AWG wire. If you need to use bigger wire, choose the Yocto-Thermistor-C

The Yocto-MaxiThermistor can also be used as a multichannel ohm-meter.

This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.

Product Overview

• Product Name: Yocto-MaxiThermistor
• Product ID: THRMSTR2
• Hardware Release: Rev. B
• Country of Manufacture: Switzerland

Technical Specifications

• Channels: 6
• Refresh Rate: 1Hz
• Measuring Range: 100Ω to 500KΩ
• Accuracy (1KΩ to 10KΩ): ~0.1%
• Typical Accuracy: ~1%
• Protection Class: IEC 61140 Class III
• USB Isolation (Dielectric Strength): 1.5kV
• RoHS Compliance: RoHS III (2011/65/UE + 2015/863

Operational Specifications

• Normal Operating Temperature: 5°C to 40°C
• Extended Operating Temperature: -30°C to 85°C

Software and Integration

• Driver: Driverless (No driver needed)
• Supported Operating Systems:
  • Windows (PC & IoT)
  • Linux (Intel & ARM)
  • macOS
  • Android
• Supported SDKs / Libraries:
• Local API: C++, Objective-C, C#, VB.NET, UWP, Delphi, Python, Java, Android, LabVIEW
• TCP-Only API: JavaScript, Node.js, PHP

Physical Characteristics

• Dimensions: 58mm (W) x 50mm (L)
• Weight: 14g
• USB Connector: Micro-B
• Suggested Enclosure: YoctoBox-MaxiIO-Transp
