The Yocto Range is a selection of USB PCBs that allow PCs to interface with the environment to measure and sample environment data.
We specialise un USB instrumentation get in touch to discuss the application

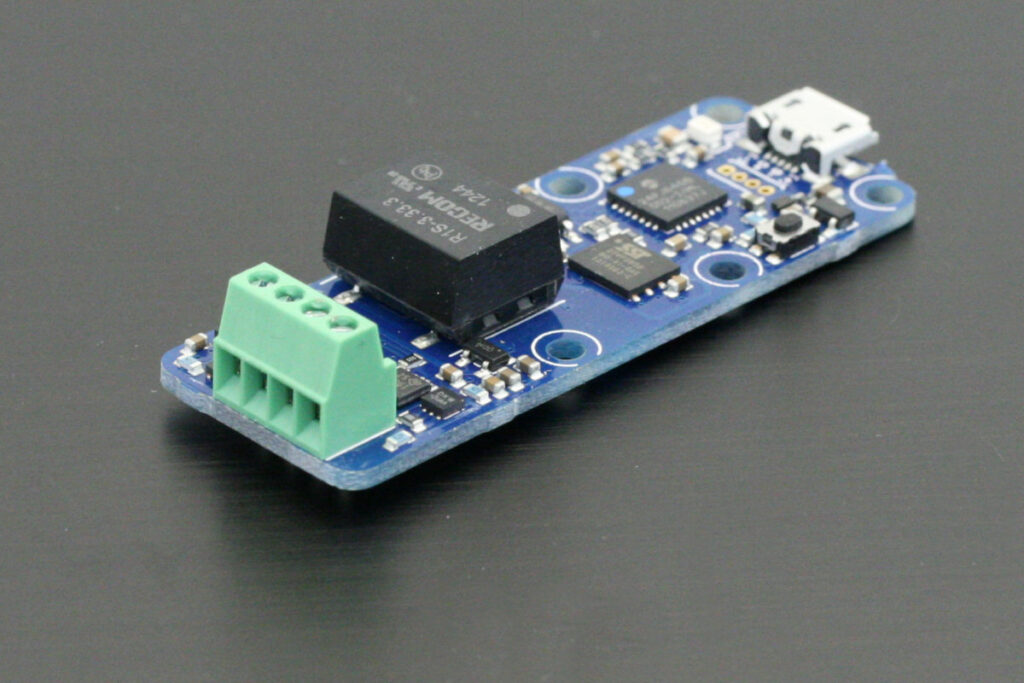

Yocto-PT100 PT100 USB Converter
- Sensor Type: PT100 (RTD, Resistance Temperature Detector)
- Measuring Range (Temperature): –200°C to +800°C
- Accuracy: ±0.03°C
- Sensitivity: 0.01°C
- Refresh Rate: 15 Hz

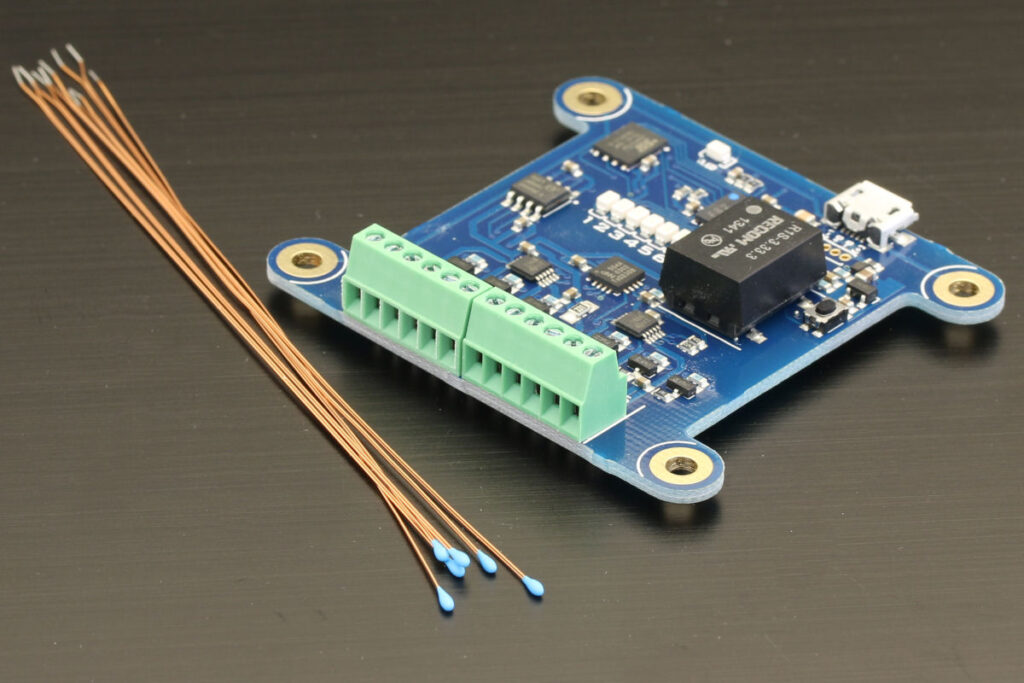

Yocto-MaxiThermistor USB 6 Thermistor Channel
- Channels: 6
- Refresh Rate: 1Hz
- Measuring Range: 100Ω to 500KΩ
- Accuracy (1KΩ to 10KΩ): ~0.1%
- Typical Accuracy: ~1%
- USB Isolation (Dielectric Strength): 1.5kV
Yocto-Temperature USB Temp sensor
- Measuring Range: -40 °C to +125 °C
- Accuracy: ±0.25 °C
- Sensitivity: 0.1 °C
- Refresh Rate: 10 Hz
Yocto-Meteo-V2-C USB Weather Station Probe
- Humidity: ±1.5% RH
- Pressure : ±0.01 mbar
- Temperature : ±0.2 °C
- Humidity / Temperature: Sensirion SHT35
- Atmospheric Pressure: ICP-10100
Yocto-4-20mA Rx C 4-20mA USB converter
- Channels:2
- Accuracy:0.1%
- Resolution:0.001mA
- Refresh rate:50Hz
- Input impedance:100Ω
Yocto-0-10V-Rx-C Voltage USB Converter 0-10V
- Channels:2
- USB connector:USB-C
- Refresh rate:50Hz
- Input impedance:10KΩ
- Measuring range:0…10V
- Accuracy:0.1%
- Resolution:0.001V
